Hell and Back Elite In-Frame Kit — Cummins ISX

Everything for a Cummins ISX in-frame in one box, with Hell and Back coated bearings.

Hack Nation's Hell and Back Elite Series in-frame kit for the Cummins ISX, built for shops and owner-operators who want the rebuild done once, with every part that usually holds up a job already in the box.

What makes it better

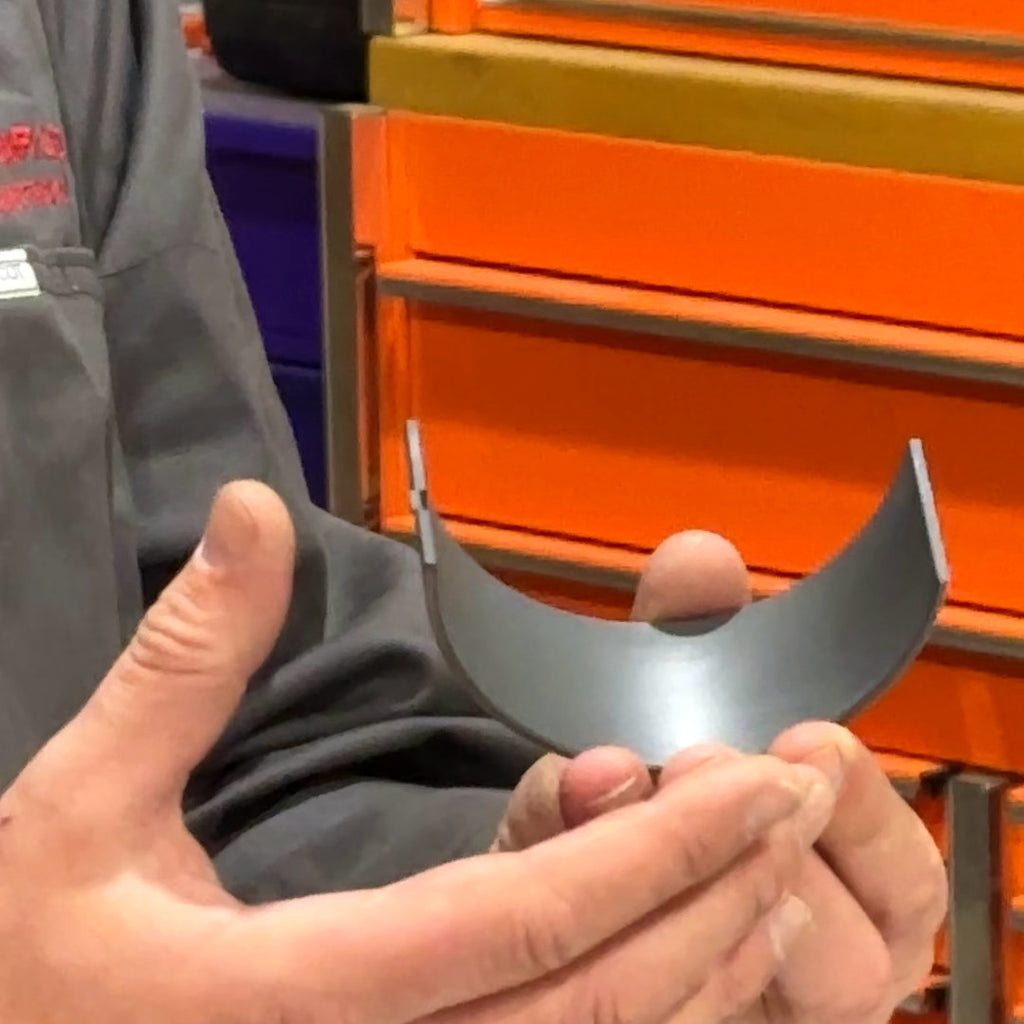

• Hell and Back coated rod and main bearings and thrust washers. The coating holds a film of oil on the bearing surface, protecting the bottom end on dry and cold starts and helping it survive oil starvation or fuel dilution.
• Coating about 1 mil thick. Factory bearing clearances are unchanged, so the kit assembles like OEM.

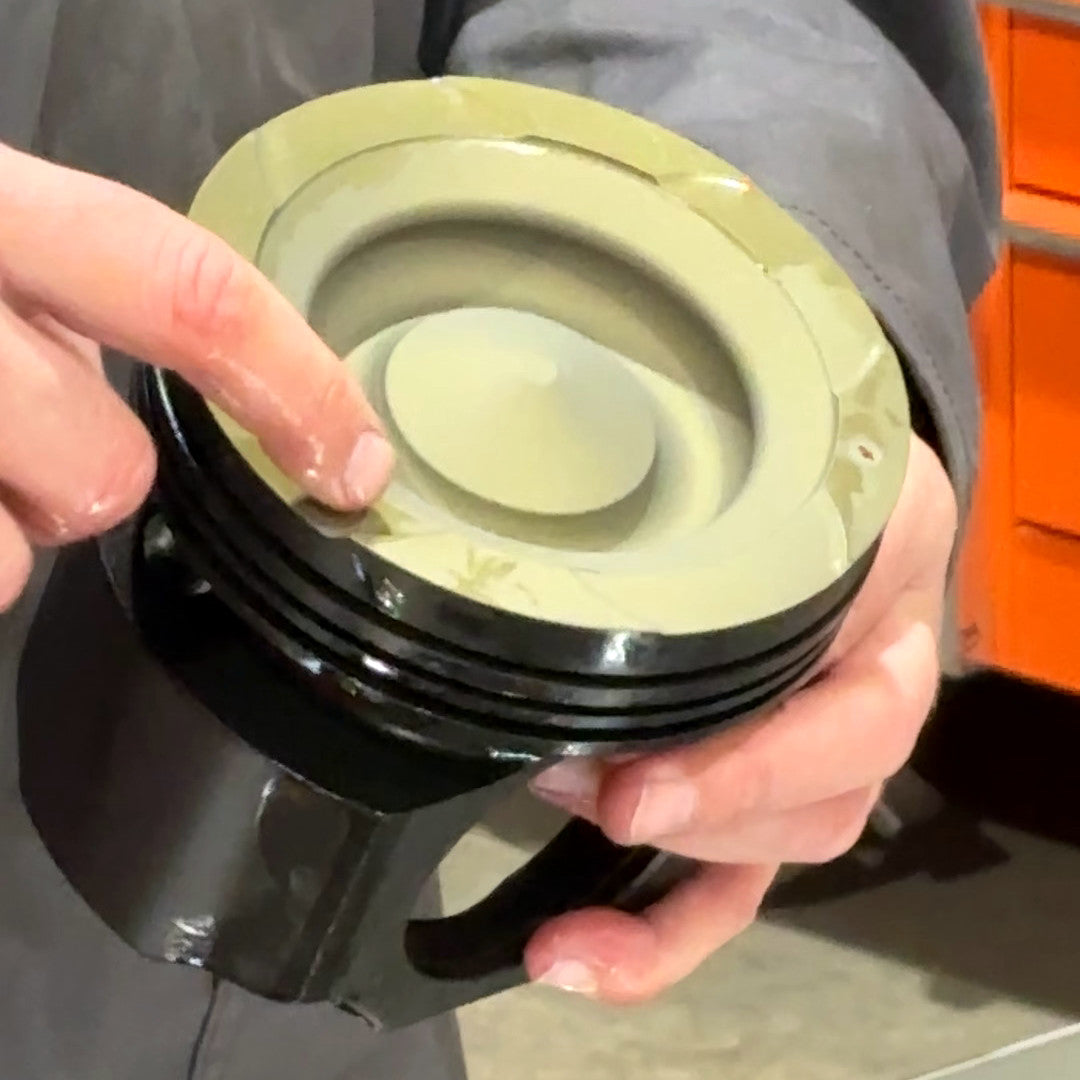

• Ceramic-coated piston crowns. The coating reflects combustion heat back into the power stroke instead of into the piston, for better efficiency.
• Superfinished, mirror-finish wrist pins. About Ra 1.5–2.0 against roughly 6–8 on a factory pin, for less friction and wear.
• New piston cooling nozzles and oil thermostat included. No separate orders for parts that usually stall an in-frame.
• Bearings for both fractured-cap and machined (saw-cut) rods. One kit covers either rod type.

Why it matters

• Built for trucks that work hard and sit between jobs. Coated bearings matter most on dry starts, which is where bottom ends get hurt.
• More than a standard kit. Hack Nation's standard kits share the same core parts; the Elite Series adds the coated bearings, coated piston crowns and superfinished wrist pins.
• Proven coating. In Hack Nation's 7,300-mile loaded-bulker test on Texas hills, its piston coating stayed on 100% while a competitor's came off completely.

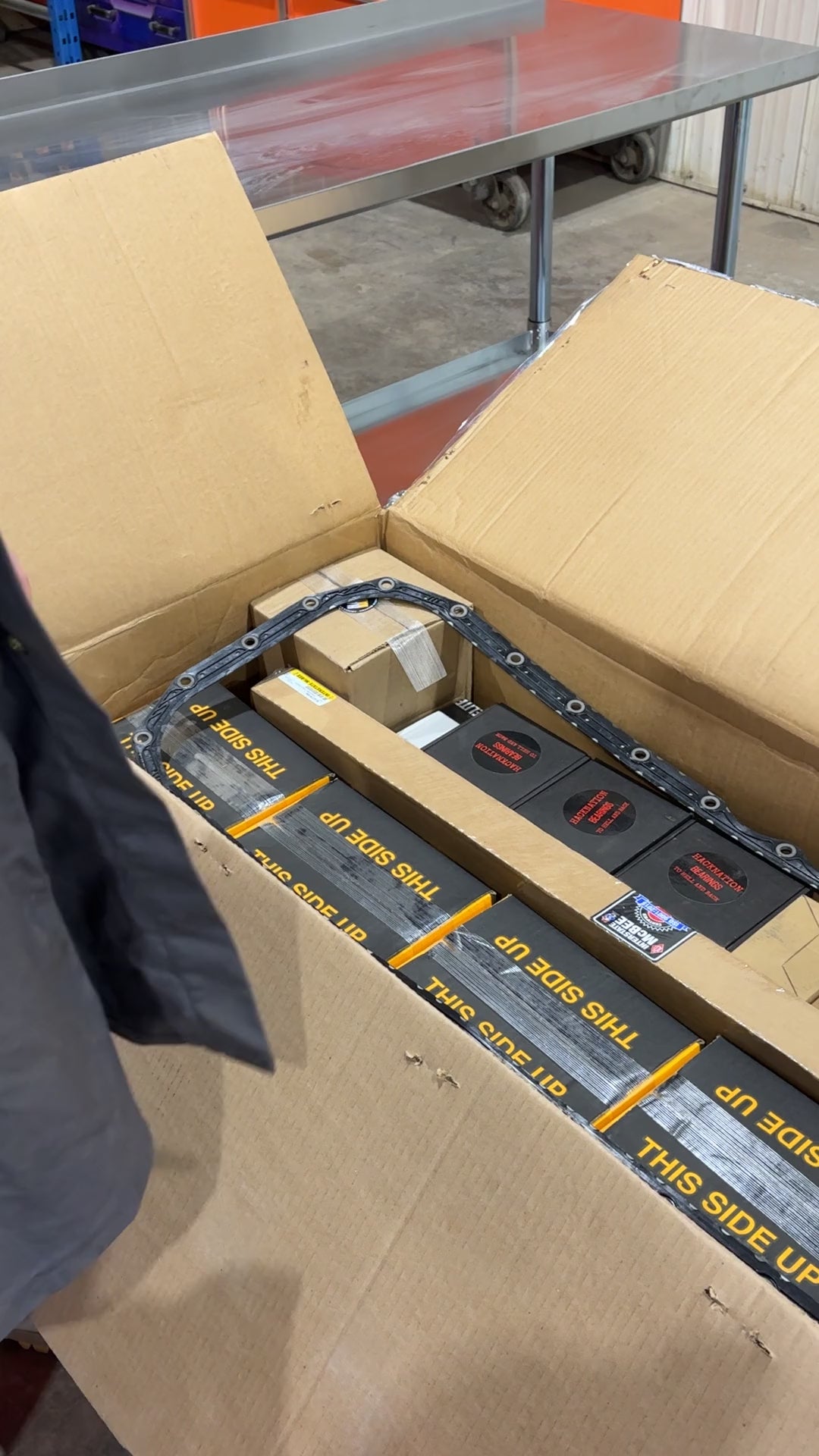

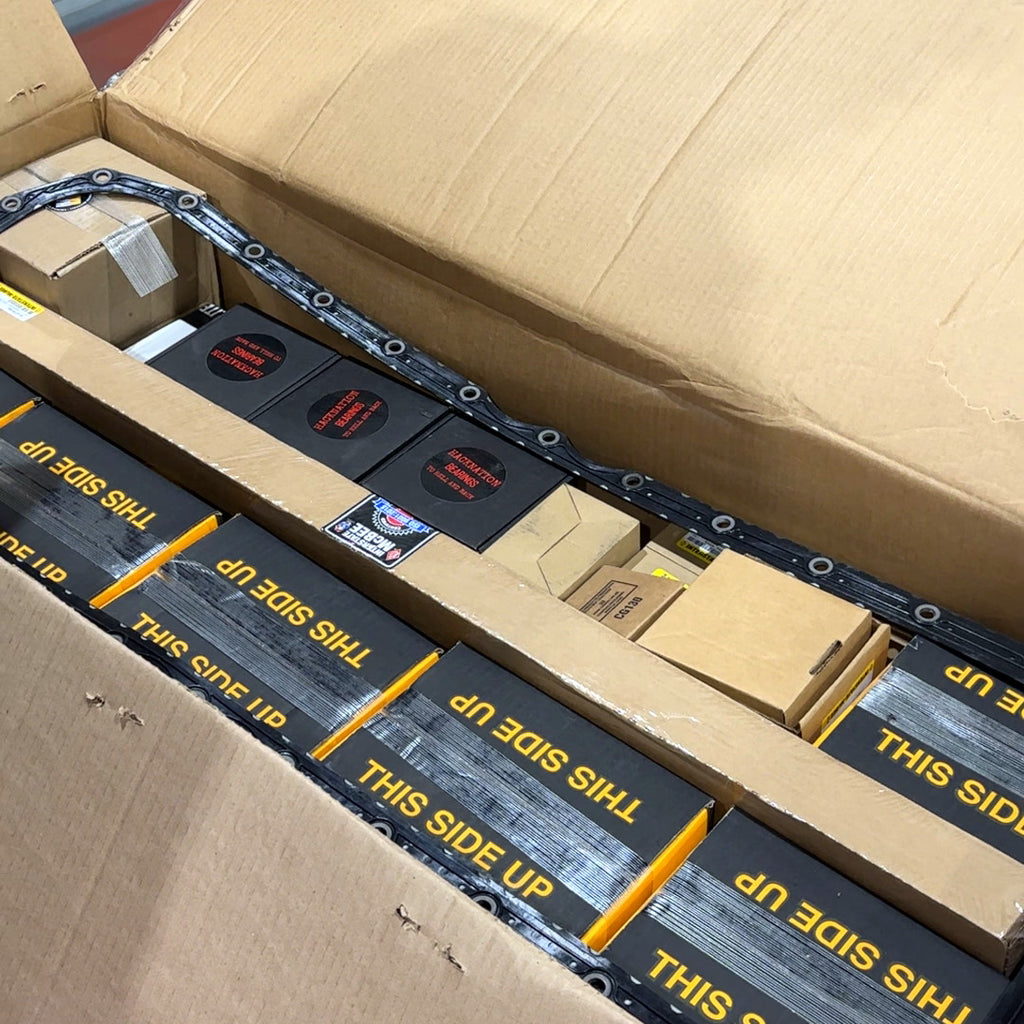

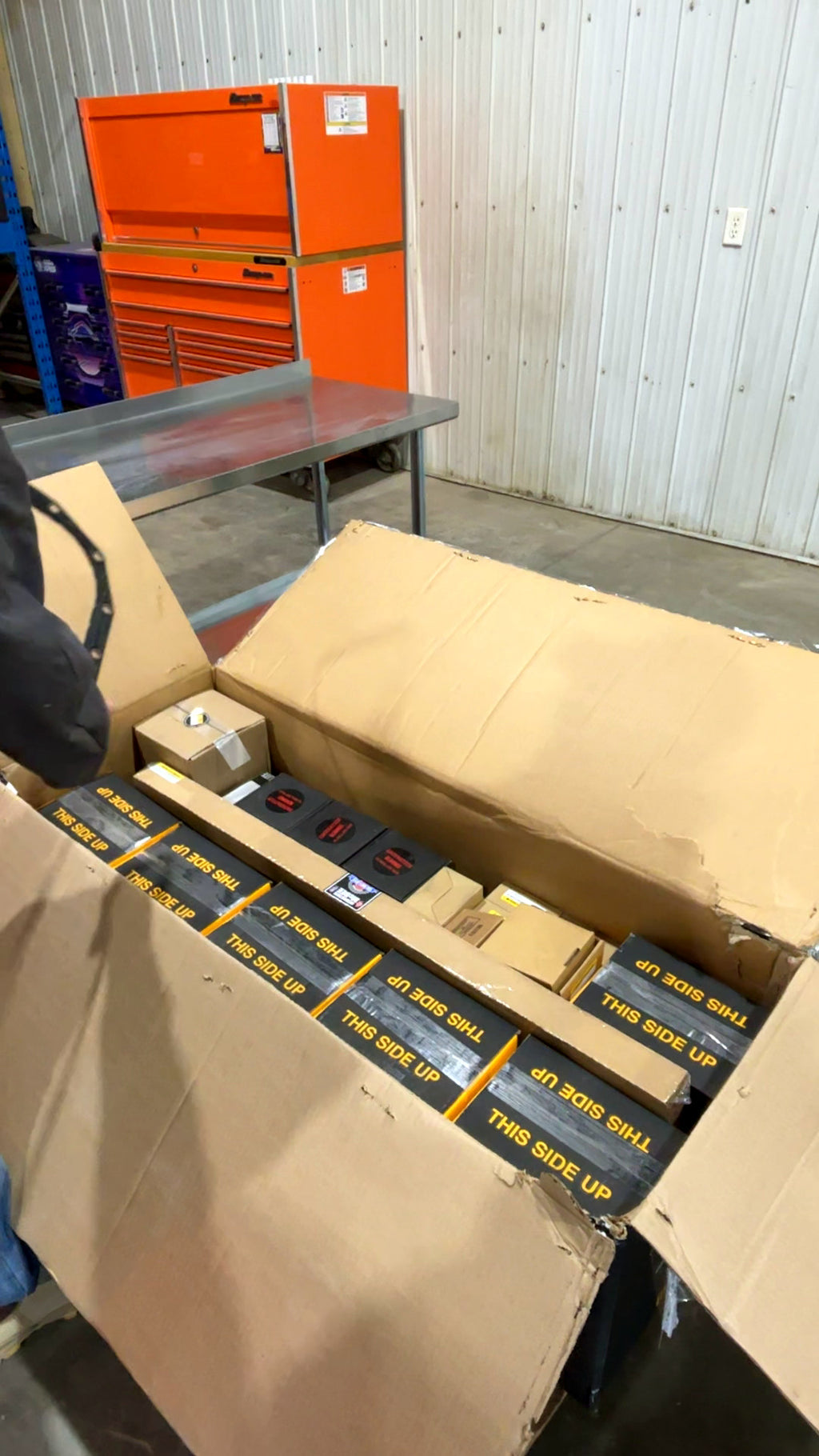

What's included

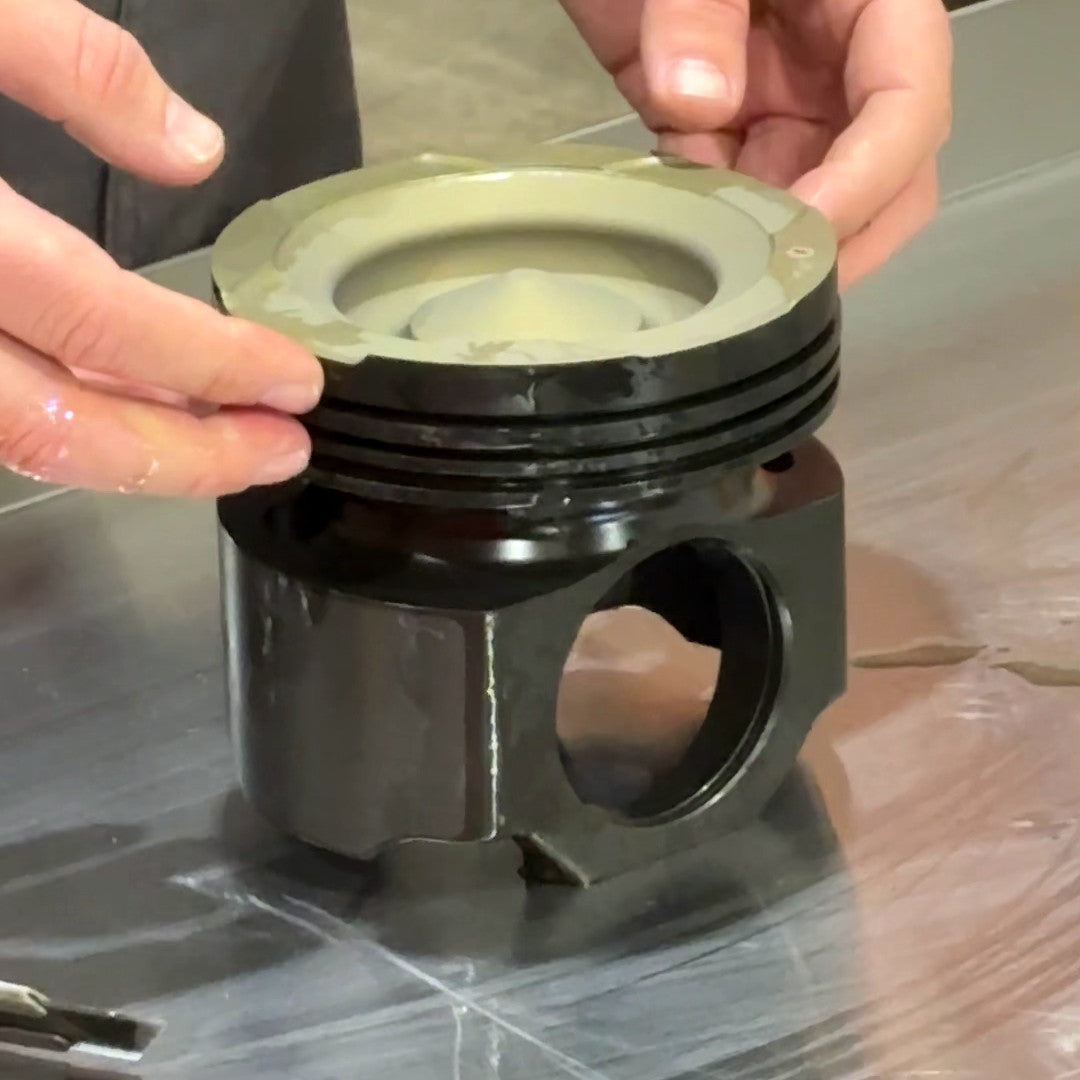

• Pistons with ceramic-coated crowns, direction-marked
• Superfinished wrist pins
• Rings
• Liners (150 mm)

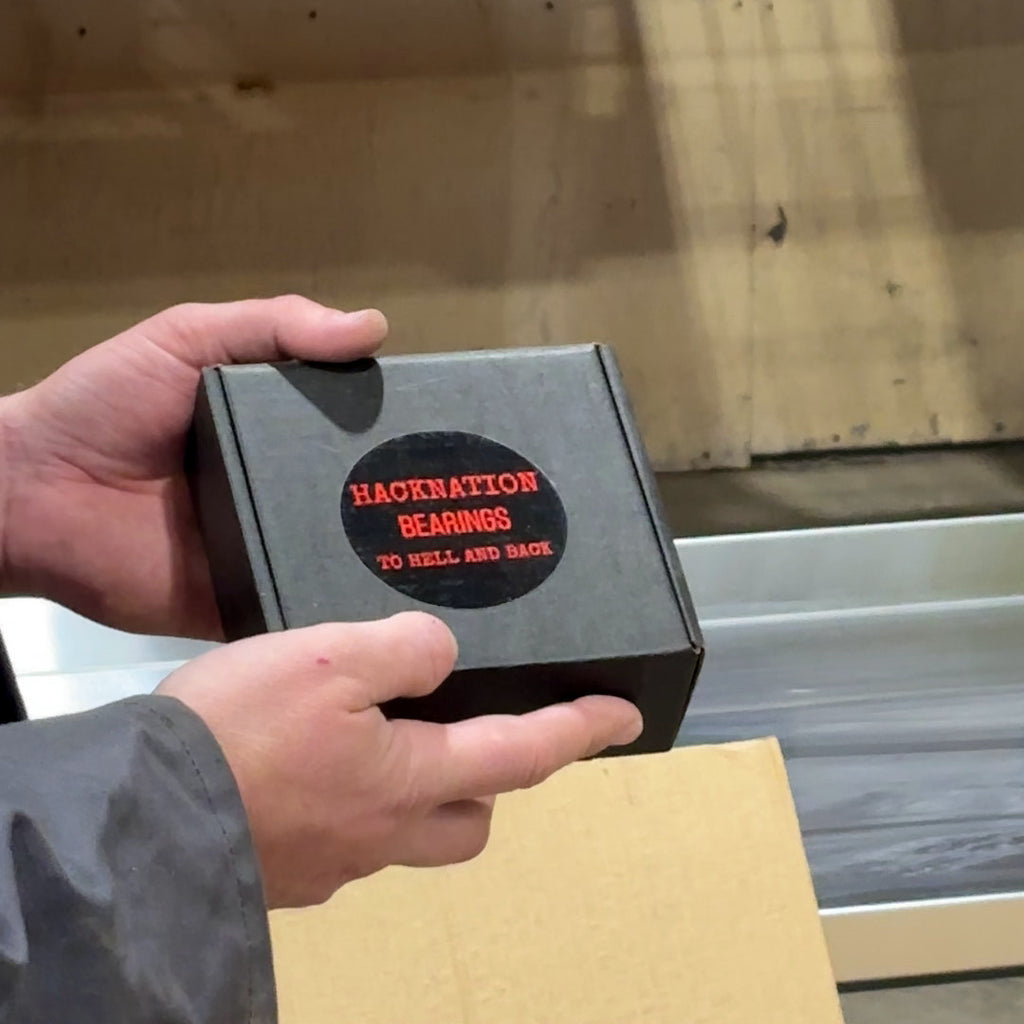

• Hell and Back coated rod and main bearings and thrust washers
• New piston cooling nozzles and oil thermostat
• Complete in-frame gasket set, including the oil pan gasket
• Plastigauge for checking bearing clearances

Fitment

Cummins ISX, CPL 3606, 3797, 3938, 3939, 4584, 4585 and 4588. Ships with 150 mm liners; 152 mm Cummins liners are stocked separately.

Send us your ESN or CPL and we'll confirm fitment before it ships.

Backed by Hack Nation's 1-year parts warranty (terms apply).

Pickup in Grande Prairie or freight quoted after order. Questions? support@northernrepairltd.com or 587-297-9269.

Northern Repair LTD is a Hack Nation dealer in Grande Prairie, AB. Pickup at 3902 99 St.
